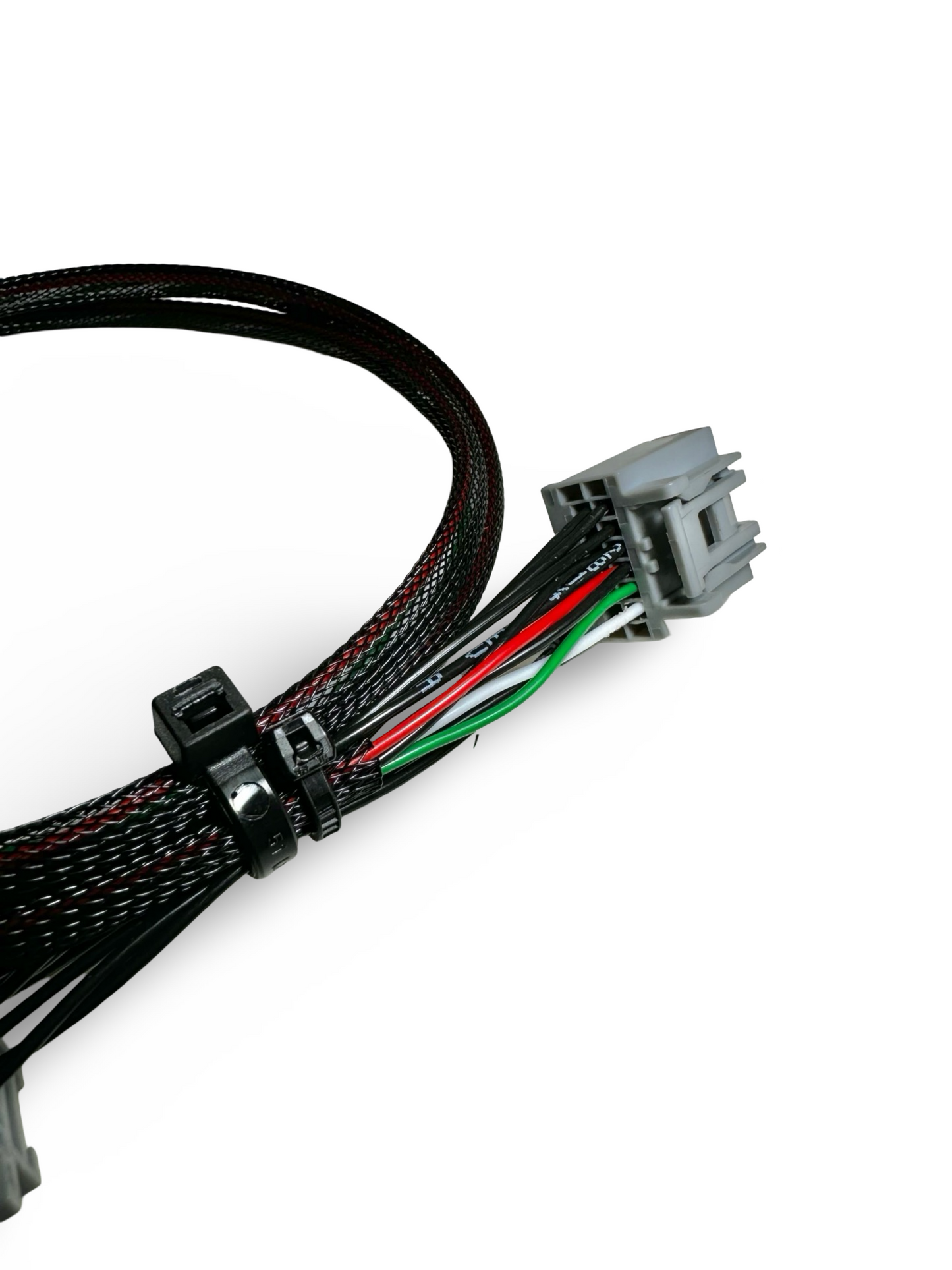

ECU Master CAN BUS Keypad PNP Wiring Harness XR5 / MK2 RS

The keypad PNP wiring harness is used to provide the correct power and signals to a CAN BUS keypad. The use of this harness will allow the keypad to communicate with the EMU Black controlling particular user defined functions.

This harness is produced using factory OEM connectors so that it can be connected directly to the original XR5 body loom without manual wiring modification required. This loom will also connect directly to the keypad using the manufacturers specified connector.

Custom wiring lengths are available for various fitment options - customer provides this information.

To ensure you receive the correct wiring harness length, selection is required.

Steering wheel audio controls = mounting keypad on top of audio control buttons located next to steering wheel.

Driver vent= mounting keypad on vent - right side of steering wheel.

Passenger vent= mounting keypad on vent - left side of steering wheel.

Lower dash = under radio / headunit

Custom = contact for more details or requests
